PO - Level Lifting Clamp

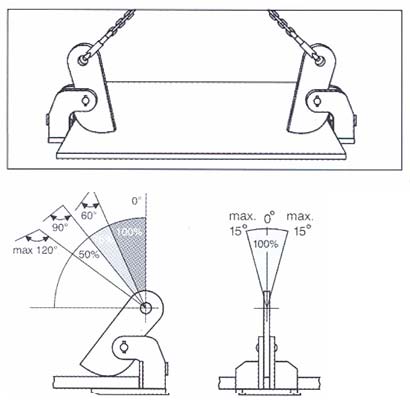

These clamps are used in pair (usually two pairs) for horizontal displacement of plates. Designed for clamping one or more plates.
| CODE | LIFTING KN. * | Op. mm. | A mm. | B mm. | C mm. | D mm. | E mm. | F mm. | WEIGHT ** | EURO | BUY |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PO 1.0 | 1000 | 0-35 | 185 | 140 | 65 | 10 | 100 | 25 | 4.8 | 896.00 | 896,00€Add to cart |
| PO 2.0 | 2000 | 0-60 | 274 | 180 | 80 | 15 | 150 | 31 | 17 | 1068.00 | 1.068,00€Add to cart |
| PO 2.0L | 2000 | 0-100 | 344 | 180 | 80 | 15 | 150 | 31 | 23 | 1334.00 | 1.334,00€Add to cart |
| PO 4.0 | 4000 | 0-60 | 279 | 222 | 90 | 20 | 185 | 31 | 30 | 1644.00 | 1.644,00€Add to cart |
| PO 4.0L | 4000 | 0-100 | 360 | 222 | 90 | 20 | 185 | 31 | 37 | 1790.00 | 1.790,00€Add to cart |
| PO 6.0 | 6000 | 0-60 | 284 | 222 | 90 | 25 | 185 | 31 | 35 | 1877.00 | 1.877,00€Add to cart |
| PO 6.0L | 6000 | 0-100 | 375 | 222 | 90 | 25 | 170 | 31 | 42 | 1962.00 | 1.962,00€Add to cart |
| PO 8.0 | 8000 | 0-60 | 327 | 225 | 120 | 30 | 170 | 31 | 40 | 2309.00 | 2.309,00€Add to cart |
| PO 8.0L | 8000 | 0-100 | 417 | 225 | 120 | 30 | 170 | 31 | 47 | 2800.00 | 2.800,00€Add to cart |
| PO 10.0 | 10000 | 0-60 | 332 | 225 | 120 | 35 | 170 | 31 | 44 | 2545.00 | 2.545,00€Add to cart |
| PO 10.0L | 10000 | 0-100 | 450 | 225 | 120 | 35 | 170 | 45 | 56 | 3519.00 | 3.519,00€Add to cart |
| * for each pair of terminals ** weight for two single terminal/no chine |
|||||||||||
PRICES DO NOT INCLUDE VAT
